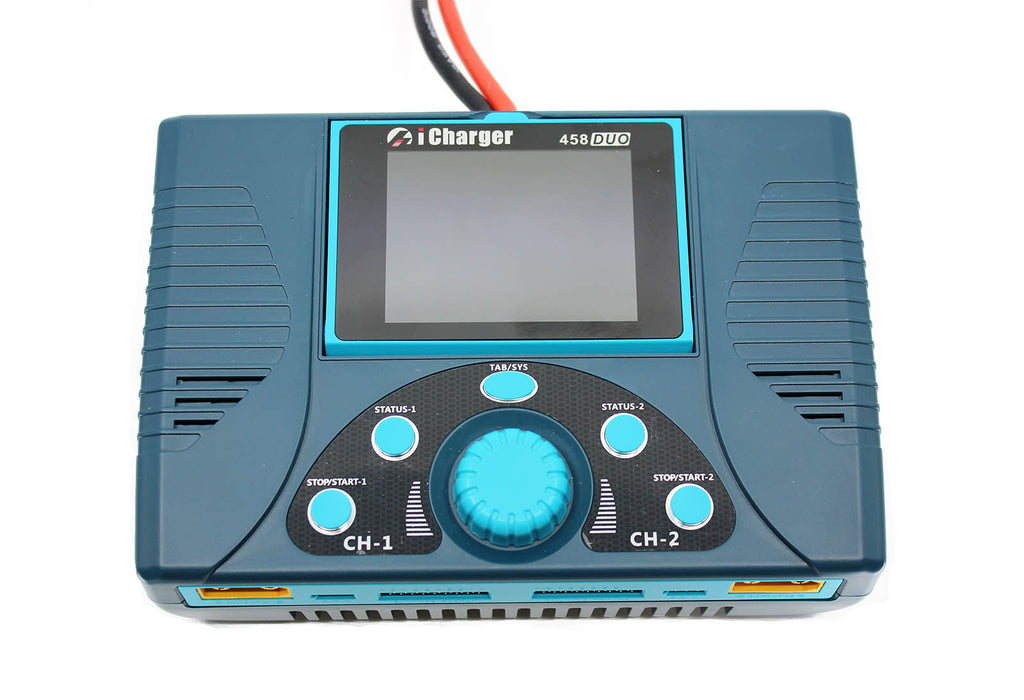

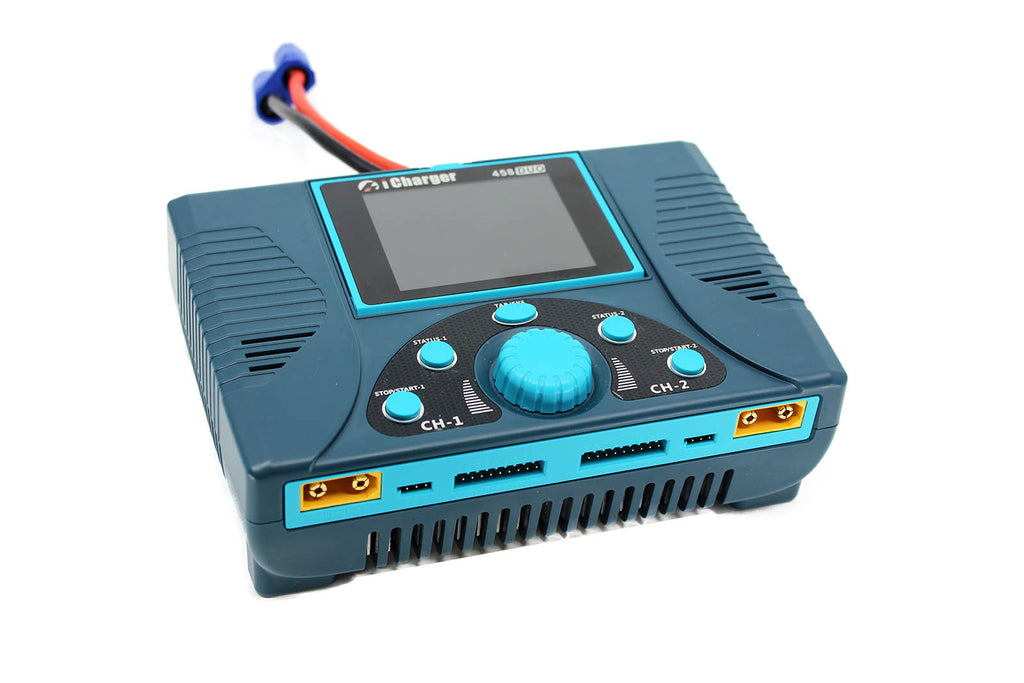

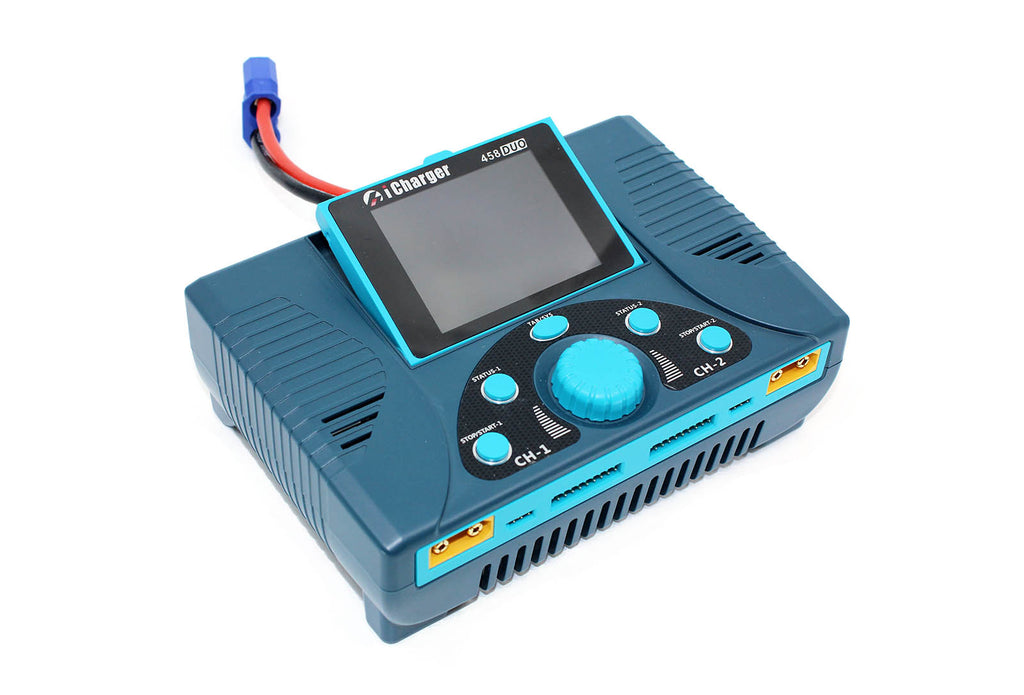

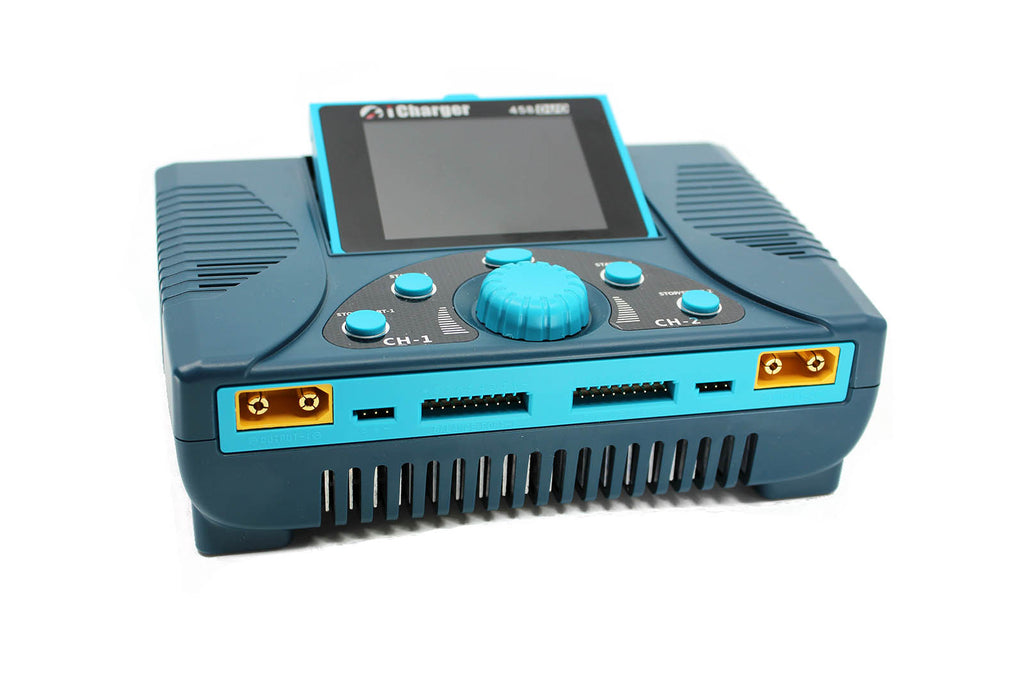

iCharger 458Duo
It may look familiar but don't be fooled by appearances - the all new 458Duo is the most powerful iCharger yet, capable of 45A charge rates per channel and a full 2200W of output.
Upgraded top to bottom from its 308Duo beginnings, the 458Duo offers beefier connections on both the input and output in order to handle the higher current levels, and features the new open-port style balance connections that do away with the need for separate balance boards. There's also a beautiful new IPS display, improved temperature ports, a USB-C fast-charge port, and more!
Nothing beats an iCharger, and nothing beats the convenience of a dual-port charger. Two independent charging channels in one compact unit lets you simultaneously work with batteries of different cell count, charging at up to 45A simultaneously - or if you want to go all out, combine the two channels and charge at up to 70A!
| Charge Power (Max) | 2200W |
| Charge Current Range | 0.1-45A per channel (70A in sync mode) |
| Discharge (Max) | 140W (80W per channel) |
| External Discharge (Max) | 2200W (1600W per channel) |
| Regenerative Discharge (Max) | 2200W (1600W per channel) |
| Discharge Current Range | 0.1-45A (70A in sync mode) |
| Balance Current | 2A per channel |
| Maximum Output Voltage (Power Supply Mode) | 40V DC |
| Input Voltage | 10-49V DC |
| Input Current Limit | 70A |

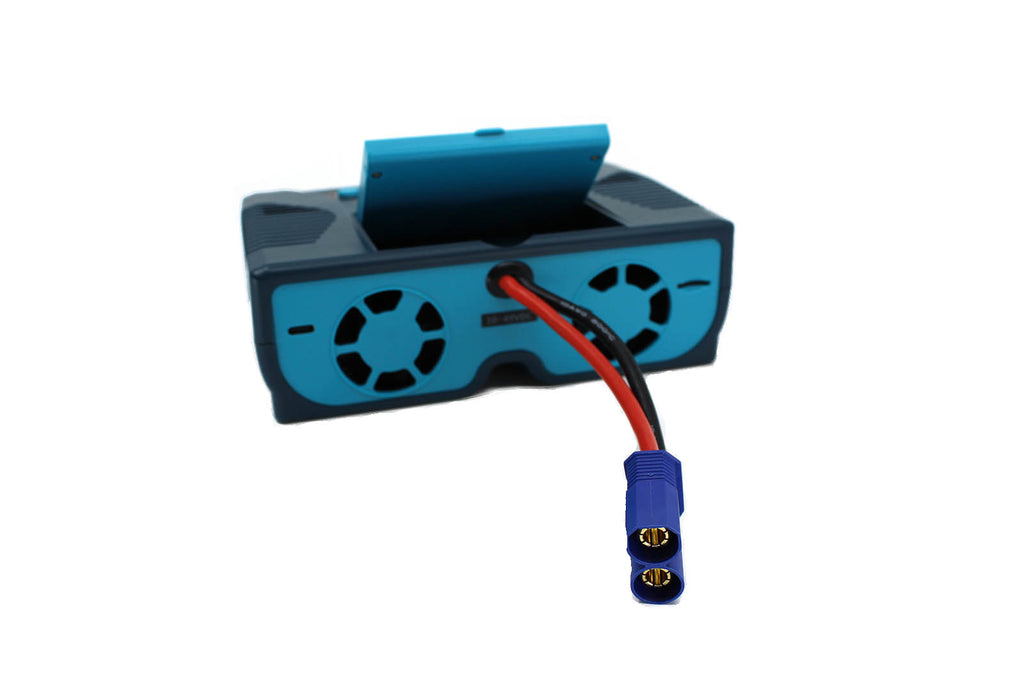

| Input Connector | Female EC8 (female housing, male bullets) |

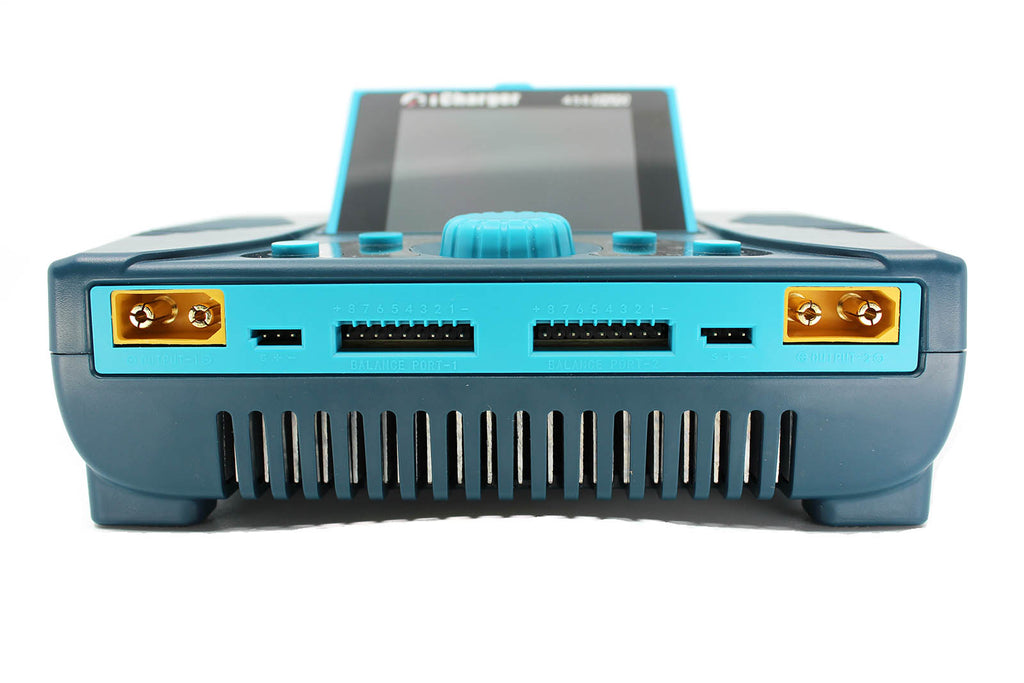

| Main Charge Connector | Female XT90 (female housing, male bullets) |
| Balance Connector | 8S JST-XH (open-port connection for 2S-8S) |
| Supported Battery Types | LiPo/LiHV/Li-Ion/LiFe/LTO/NiZn: 1-8S; NiMH/NiCd: 1-25S; Pb: 1-15S |
| USB Charge | Type-C Charge Port: 5V/3A, 9V/2A, 12V/1.5A |
| Warranty | 1 year |
| Dimensions | 171x118x59mm |
| Weight | 920g |
iCharger 458Duo Manual
