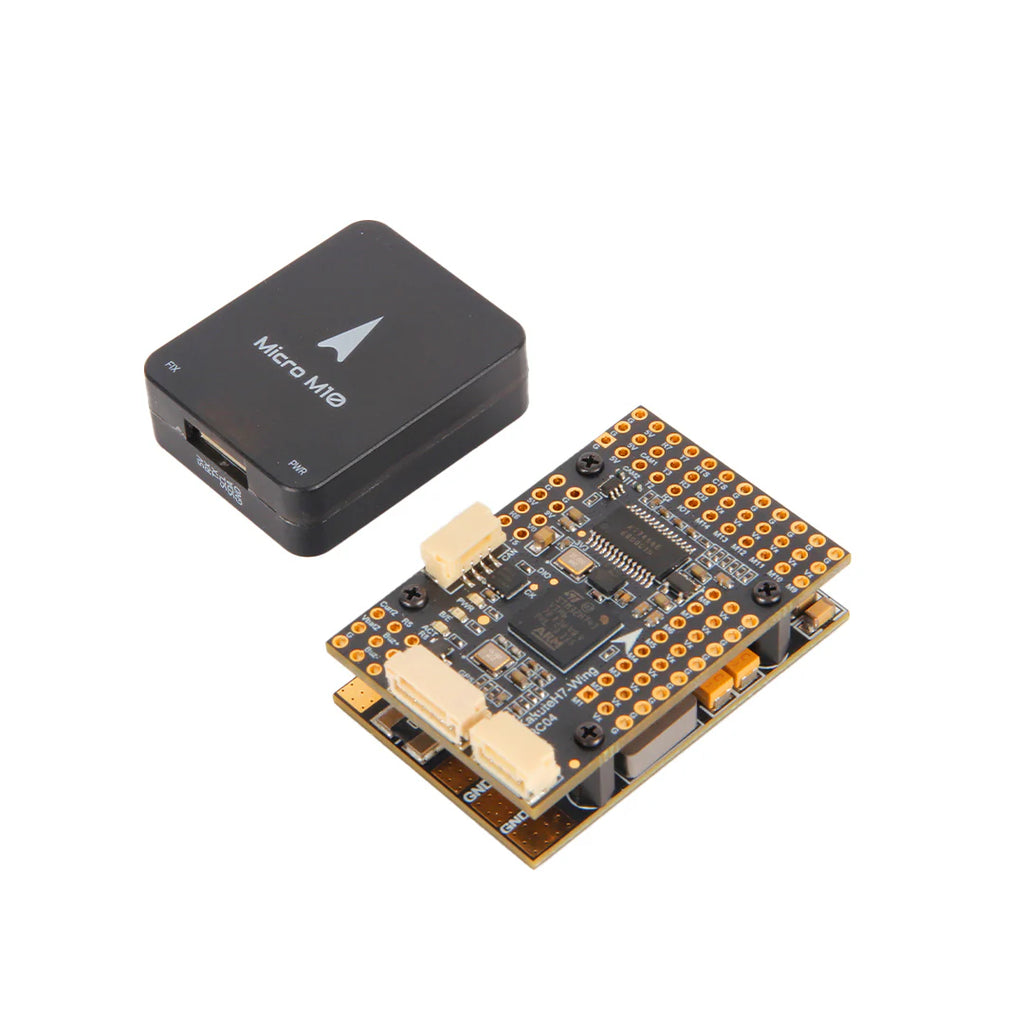

Holybro Kakute H743 Wing Flight Controller & GPS
Click to zoom in
Load image into Gallery viewer, Holybro Kakute H743 Wing Flight Controller & GPS

Holybro Kakute H743 Wing Flight Controller & GPS

FC-HKH743GPS
Feature-rich flight controller for fixed-wing aircraft including a GPS module
£102.00

Description

The Holybro Kakute H743 Wing is a full featured flight controller with layout specifically for fixed wing & VTOL applications. It has the STM32 H743 Processor running at 480 MHz and CAN Bus support, along with dual camera support & switch, ON/OFF Pit Switch, 5V, 6V/8V, 9V/12 BEC, and plug-and-play GPS, CAN, I2C ports.

This version comes with the Micro M10 GPS module.

Read More
Read Less
MCU STM32H743 32-bit processor running at 480 MHz
Gyro ICM-42688P (SPI3)
Barometer BMP280 (I2C4)
Dimensions 45x30x13.5mm (25x25mm mounting holes)
Weight 28g

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
100%
(1)
0%
(0)
0%
(0)
J
James Malone
OK Flight Controller

It is nice that the GPS/Compass has a dedicated cable that plugs into the FC. I also liked the fact that it came with all the pins soldered.

What I did not care for was the way the pins were setup. Instead of having G,V.TX,RX. in a straight line the power wire had to be done separately for the RX and Digital VTX. I had a few problems with mine and had to replace it with another one. I have since switched over to a Matek H743 which has a more sensible pin ordering for the different components ie GPS, VTX, and RX.
