2S-8S Charger Interface Panel
- Panel-mount board to relocate charger connections

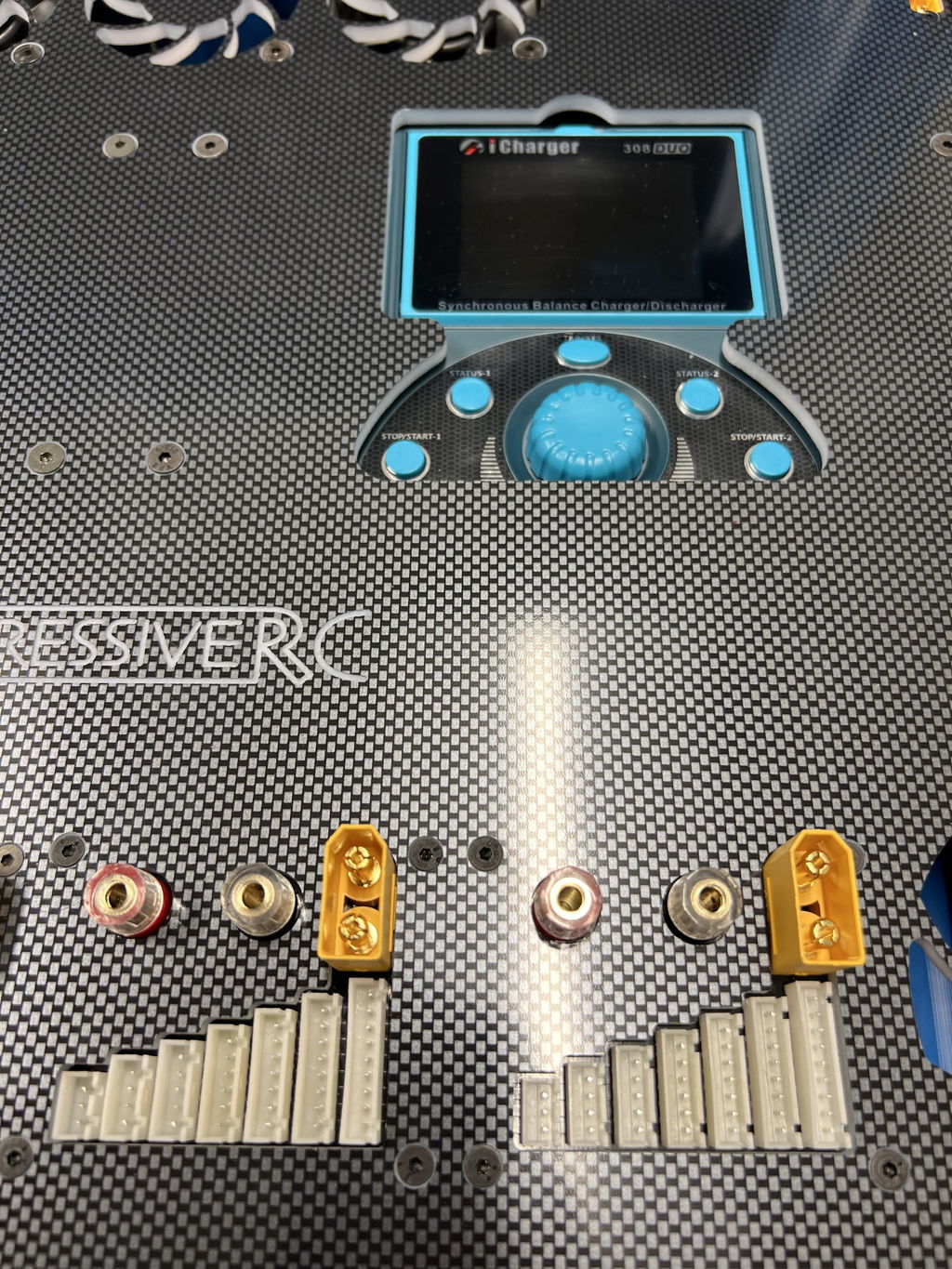

This 2S-8S JST-XH Charger Interface Panel (or CIP) provides a set of balance connectors, an EC5, XT60, or XT90 connector, and room for a set of banana plugs (available separately). This product is made to be mounted underneath or on top of many surfaces and panels, such as our ProgressiveRC Case decks, and provides a full relocation of the charger outputs with a full balance board as well as a main charge connector - choose from EC5, XT60, or XT90.
Add a set of banana plugs to the board and you'll be able to use any standard charge cable for any other connector. You can also use this method to connect any parallel boards or cables when charging one battery just isn't enough!
Installation Note: When using with banana plug posts, ensure both plastic spacers of the banana plug binding posts are above the circuit board - do not use a spacer below the board.
DXF Template for Charger Interface Panel cutout
PDF Template for Charger Interface Panel cutoutCustomer Reviews
The Charger Interface are realy cool and works perfect. Greatings from Switzerland
Deck fit and finish is awesome! All wiring and package was shipped to me for assembly. I am the envy of my flying field. I used this to finish the P30 and S1200 pair. You will need to decase the S1200, mind the cheap design (S1200) and heat!
Essential for a modular charging station
Excellent quality and is part of any modular charging case build. Makes for a nice organizational component and can support up to 8S balance leads. Add binding posts for 4mm Banana plugs to your lipo.
Excellent service and fast delivery thanks
