iFlight Beast STD F7 45A All-In-One
This is the new iFlight Beast series AIO FCs for your ultimate build. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc.
Lightweight, minimum size, minimum work. This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra powerful mosfets for almost any build. Solder your motor wires on and let's go!
DJI Plug & Play plug and so many UARTs most people wouldn't even use em' all. Compatible to digital and analog FPV, onboard Barometer for possible long range flights and much more. Unleash the beast!
| MCU | BGA-STM32F745 |
| Gyro | MPU6000 |
| Input Voltage | 2S-6S LiPo |
| Max Current | 45A continuous, 50A burst |
| BEC Output | 5V 2.5A, 10V 2.5A |
| Dimensions | 44x37.5mm (30.5x30.5mm mounting holes) |
| Weight | 12.2g |
iFlight Beast STD F7 45A All-In-One Wiring DiagramCustomer Reviews
iFlight Beast STD F7 45A All-In-One

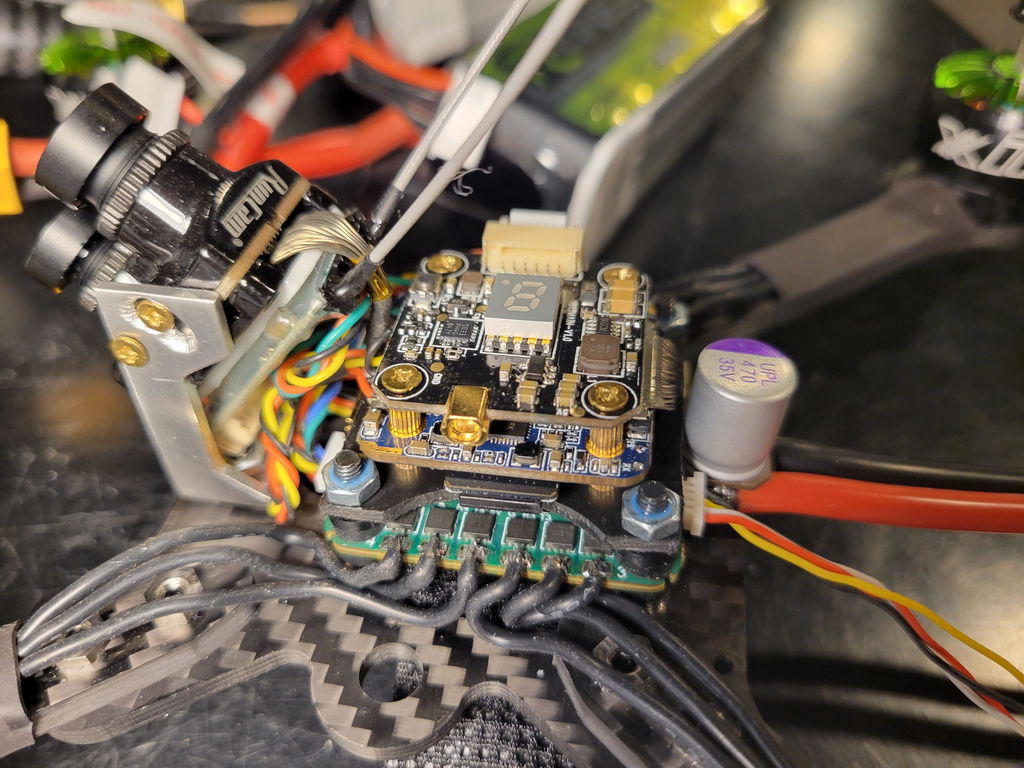

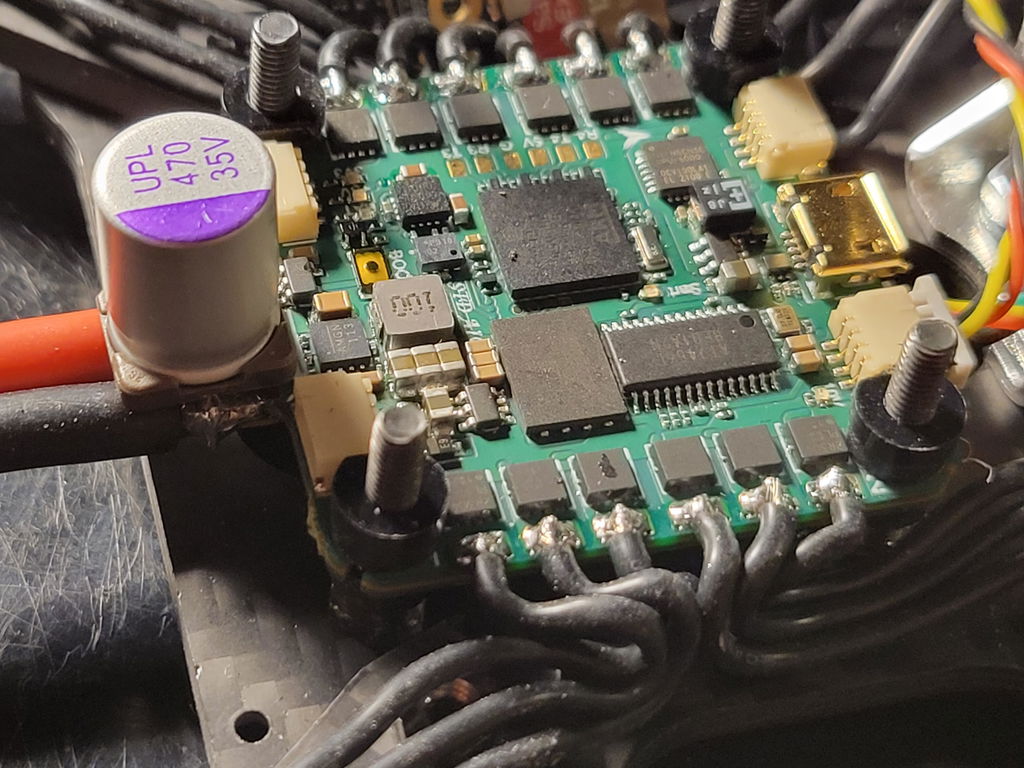

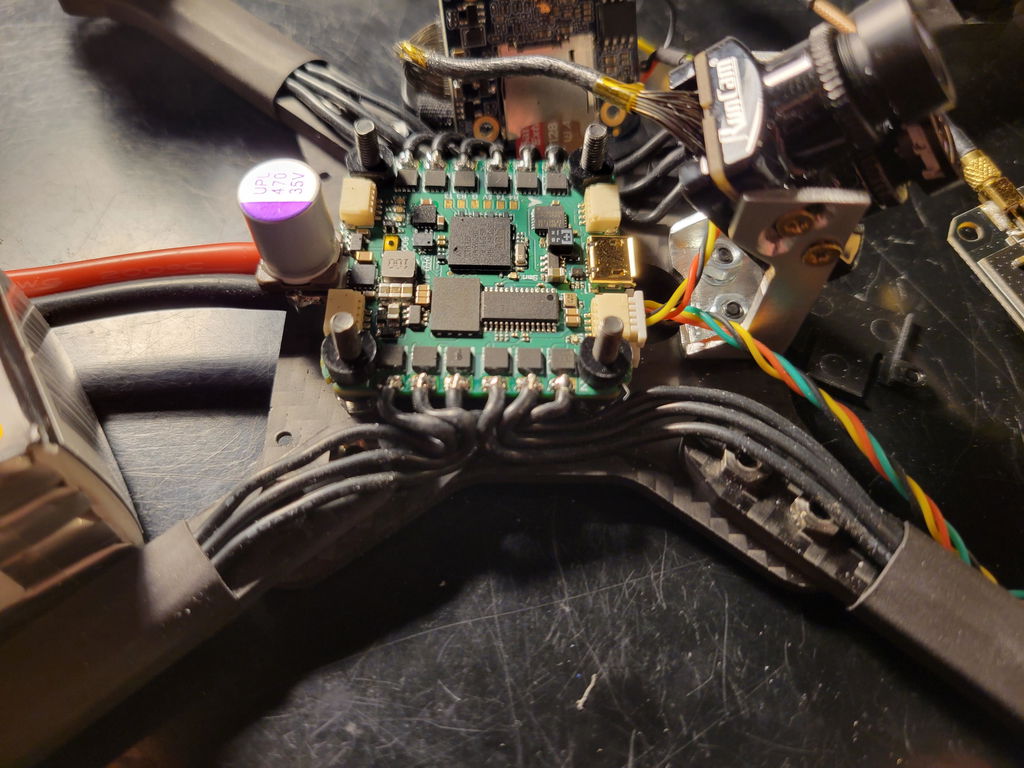

Got this one for a retrofit of a Blade Scimitar 215 and this board, for the same form factor, replaces the Spectrum flight controller, the distribution board and 4xESCs. And all of that btw doubling both power and features. I only kept the Spektrum SRXL2 receiver.
Mfg quality is spotless.
Also to point out the 5V BEC short circuit protection works well - tested it by accident.
