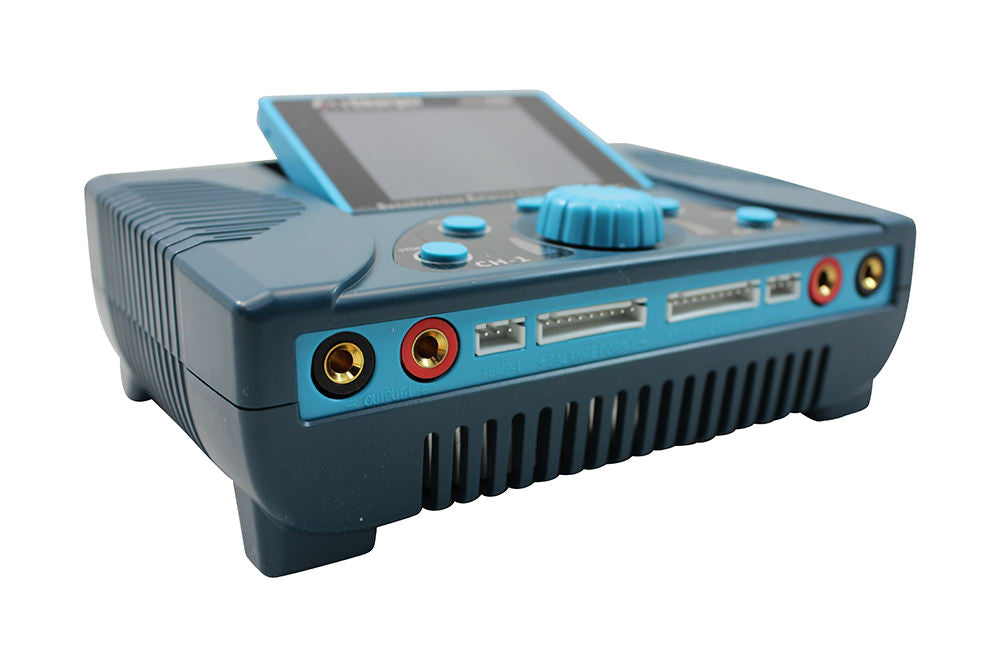

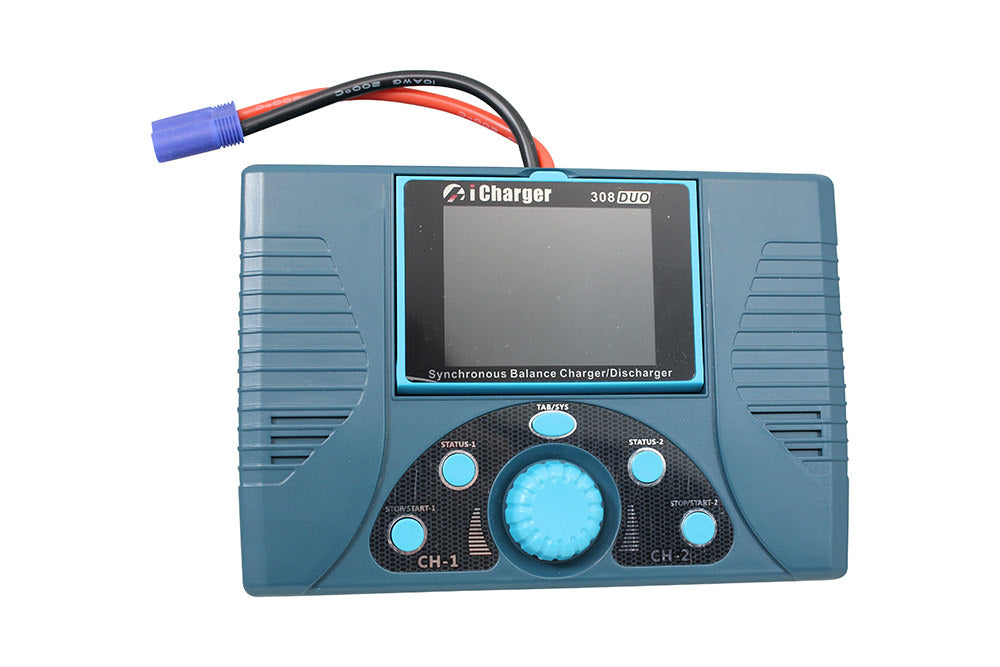

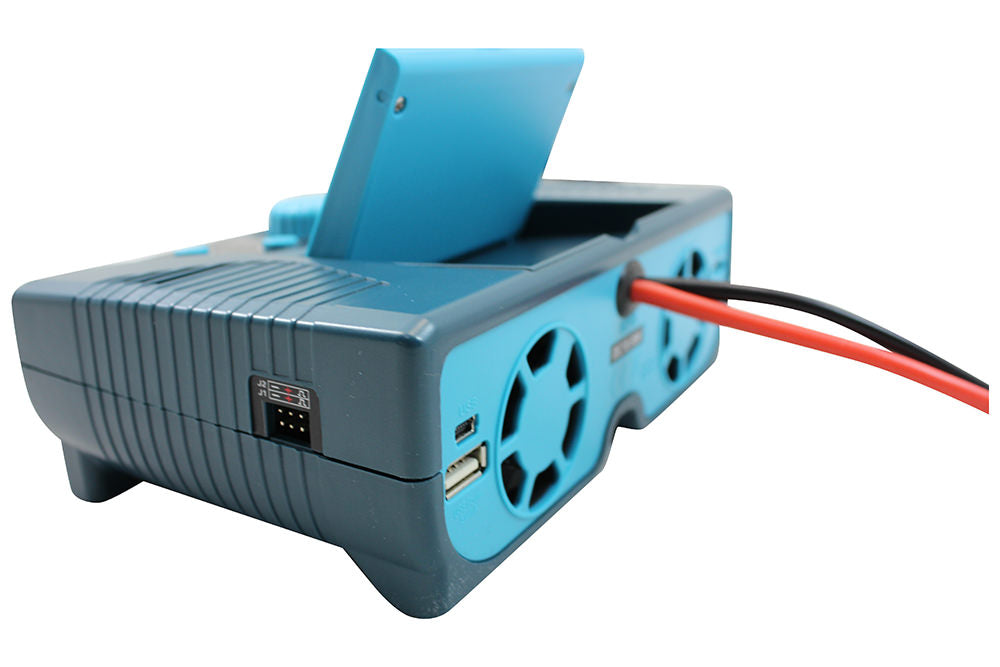

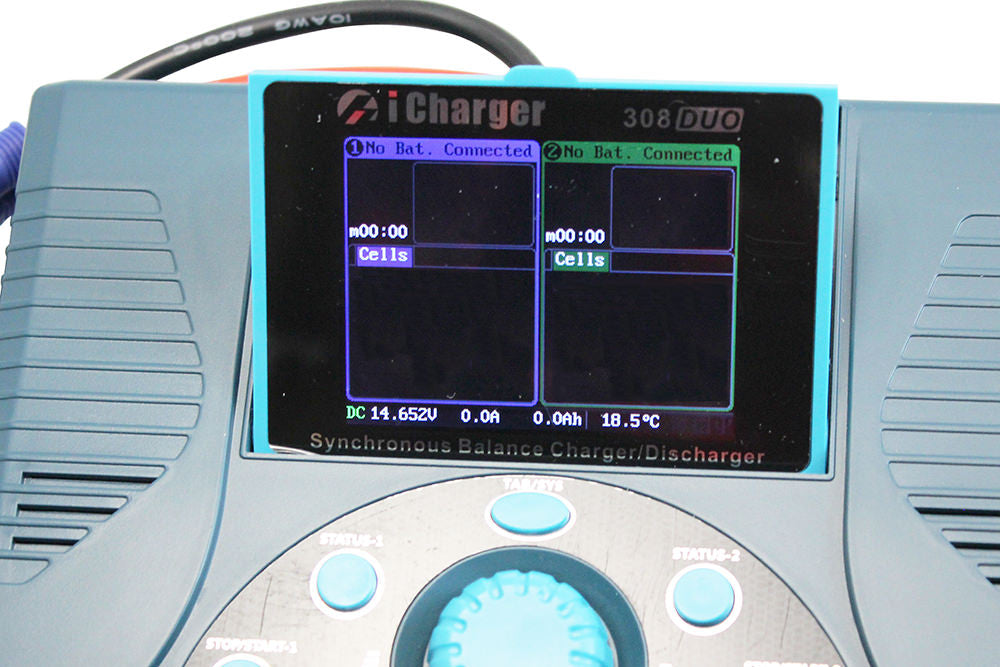

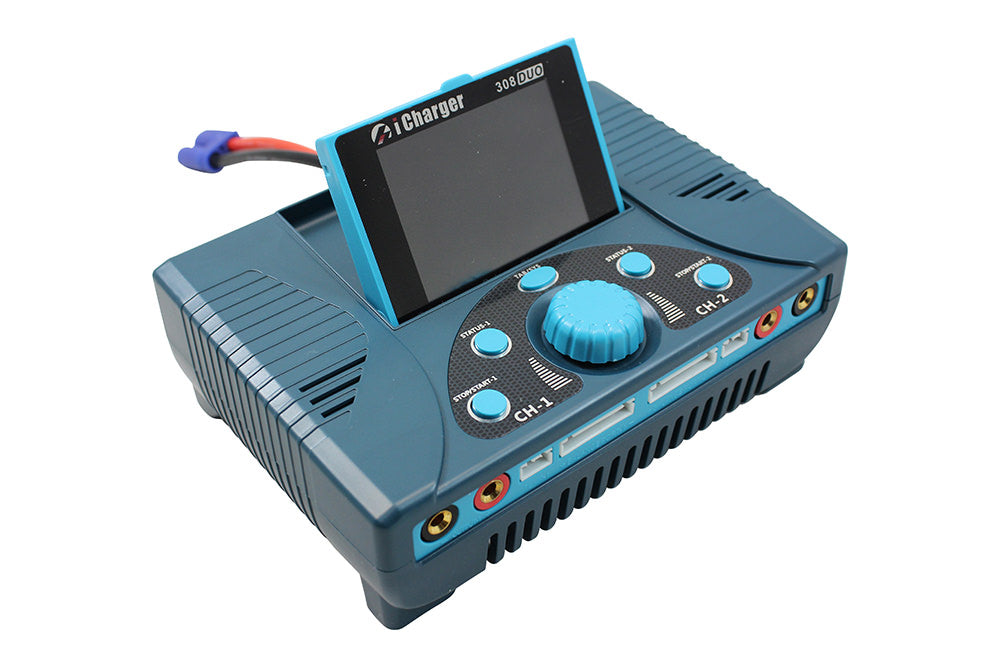

iCharger 308Duo
308DUO
High-power charger providing 30 amps on each of two channels - or combine the two outputs in parallel for up to 50 amp charge rates!
Includes a JST-XH balance board for each channel!
Includes a JST-XH balance board for each channel!
Need flexibility in your charging? Nothing beats the convenience of a dual-port charger. Two independent charging channels in one compact unit lets you simultaneously work with batteries of different cell count , charging at up to 30A simultaneously - or if you want to go all out, combine the two channels and charge at up to 50A!

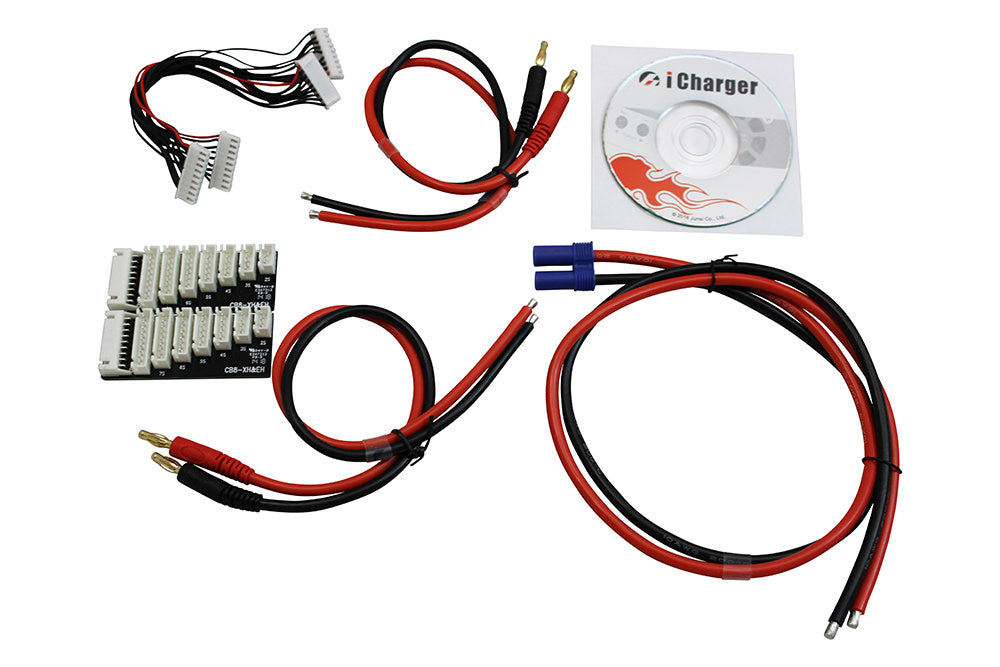

With two JST-XH balance boards included - one for each channel - you'll be ready to go right away.
Read More
| Input Voltage | 10 - 30V DC |
| Dimensions | 171x118x59mm |
| Balance Accuracy | 10mV |
| Memories | 64 user presets |
| Current Drain (Balancing) | 1.2A per channel (up to 2.4A in synchronous mode) |
| Discharge Current Range | 0.05-30A per channel (up to 50A in synchronous mode) |
| Input Current | 60A |
| Temperature Control (Intel.) | Yes |
| LiPo/LiIo/LiFe | 1 - 8 series |
| Charge Power (Max) | 1300W at >24V (800W max. per channel) |
| Discharge (Max) | 80W per channel (up to 140W in synchronous mode) |
| External Discharge (Max) | 1050 W per channel (up to 2100W in synchronous mode) |
| Regenerative Discharge (Max) | 800W per channel (up to 1300W in synchronous mode) |
| Cell Count (NiCd/NiMh) | 1 - 25 series |
| Pb Battery Cell Count | 1 - 18 series |
| PC Connectivity | Mini USB 2.0 |
| USB Charging Port | 5V, 1A (1.2A current limiting protection) |
| Warranty | 1 year |
| Weight | 910g |
| Charge Current Range | 0.05-30A per channel (up to 50A in synchronous mode) |
iCharger 308Duo Manual
