PRC Signature Series: Hardline P30 2000W Combo

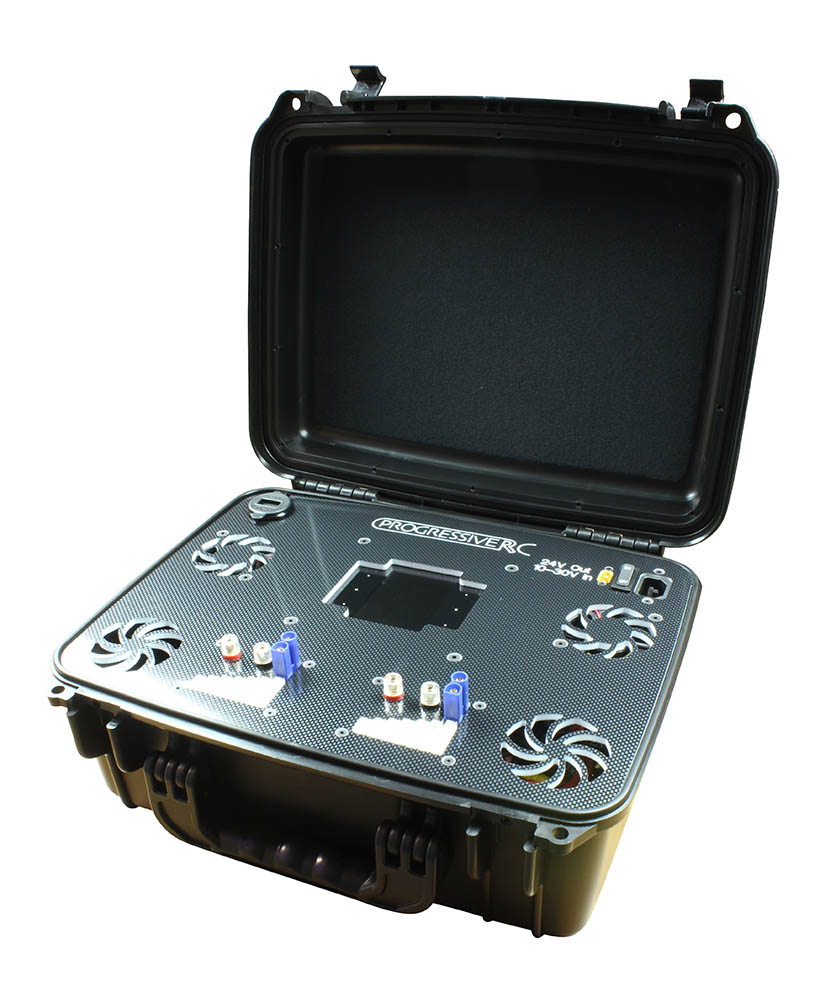

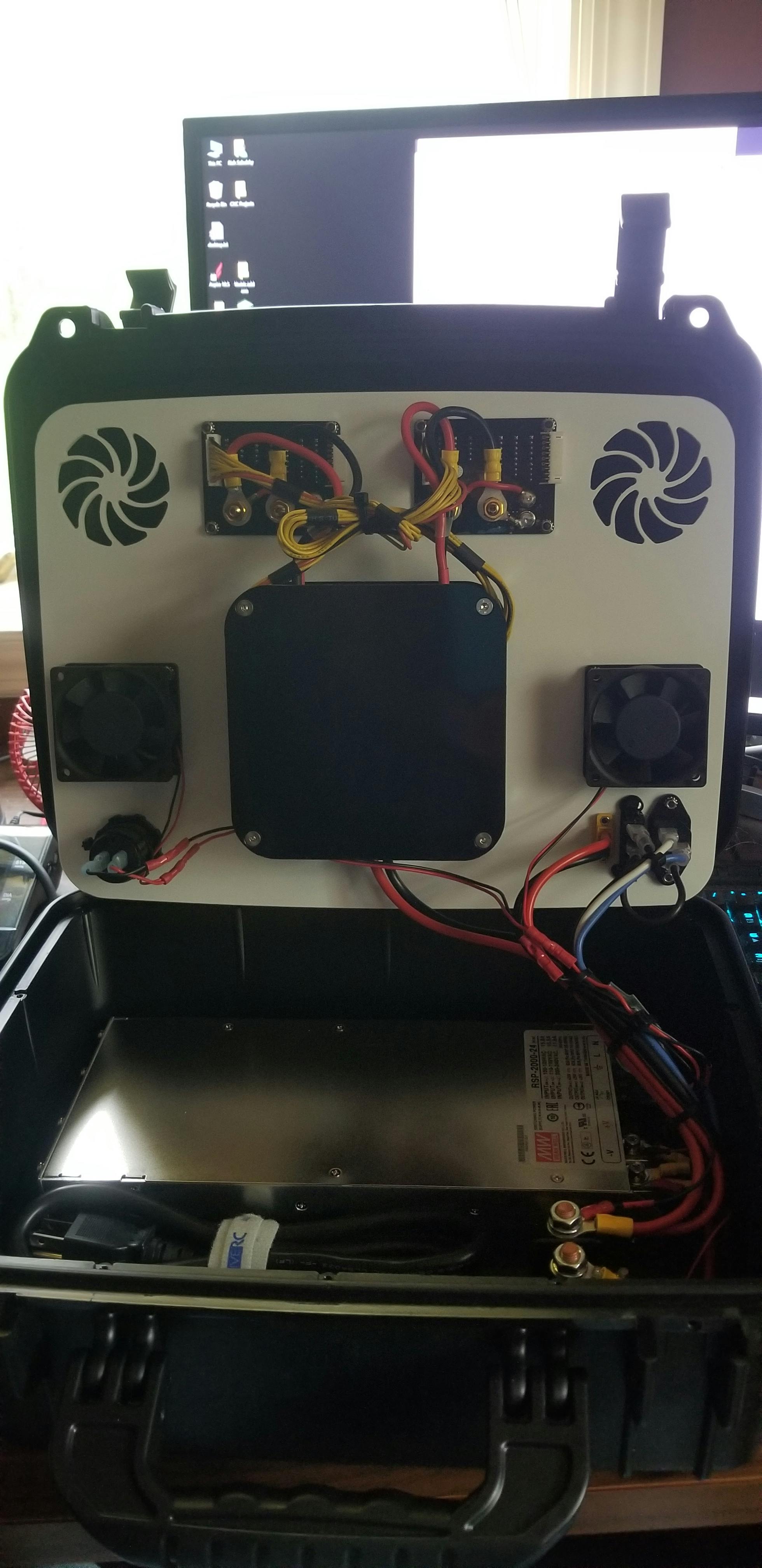

Get a taste of the custom shop, without the wait. This Signature Series case comes complete with our ProgressiveRC Charger Interface Panels, giving you a full set of connections for each channel available at the deck with no additional cabling required to start charging an EC5-equipped battery. With the included banana plugs, you can also charge any other battery - or parallel charge - with a standard charge cable or board. This truly makes for an unbelievably convenient portable charging solution! Also included are an integrated AC switch, a dual-port USB charger with built-in voltmeter, and even a DC input port for field charging.
The combination of the ISDT P30 and the Mean Well RSP-2000-24 is ready for any situation you can throw at it. Need to charge 6S packs at the same time as your 3S? The dual channels on the charger make this a breeze, and the Mean Well gives you enough power to charge them both at 30A simultaneously.
Since all our cases are built to order, your case may take a few business days to get ready, but it's worth the wait.
Includes:

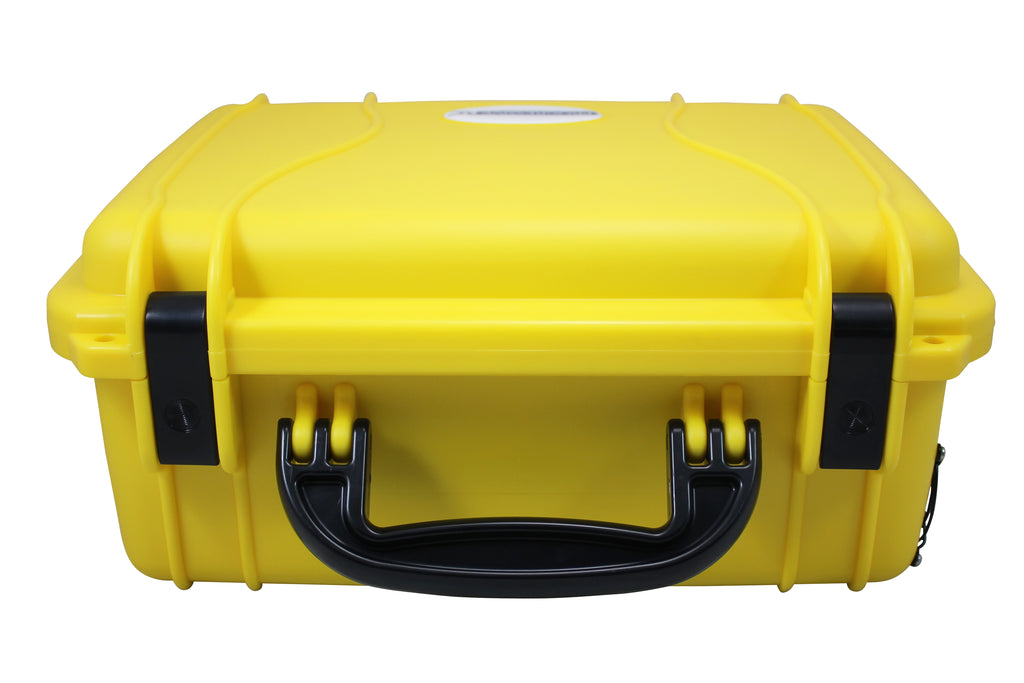

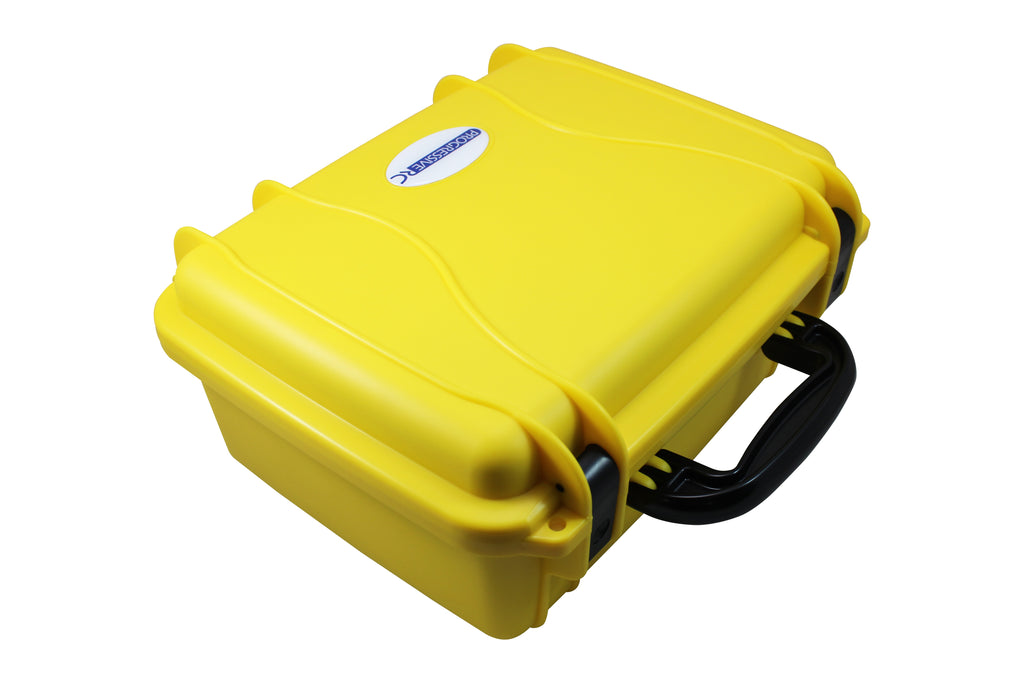

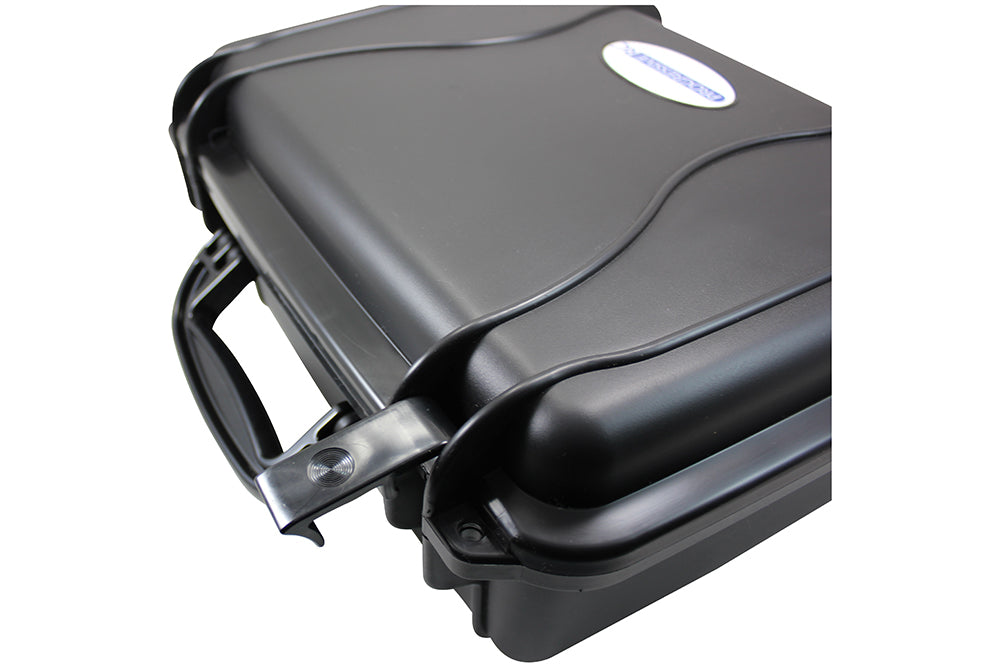

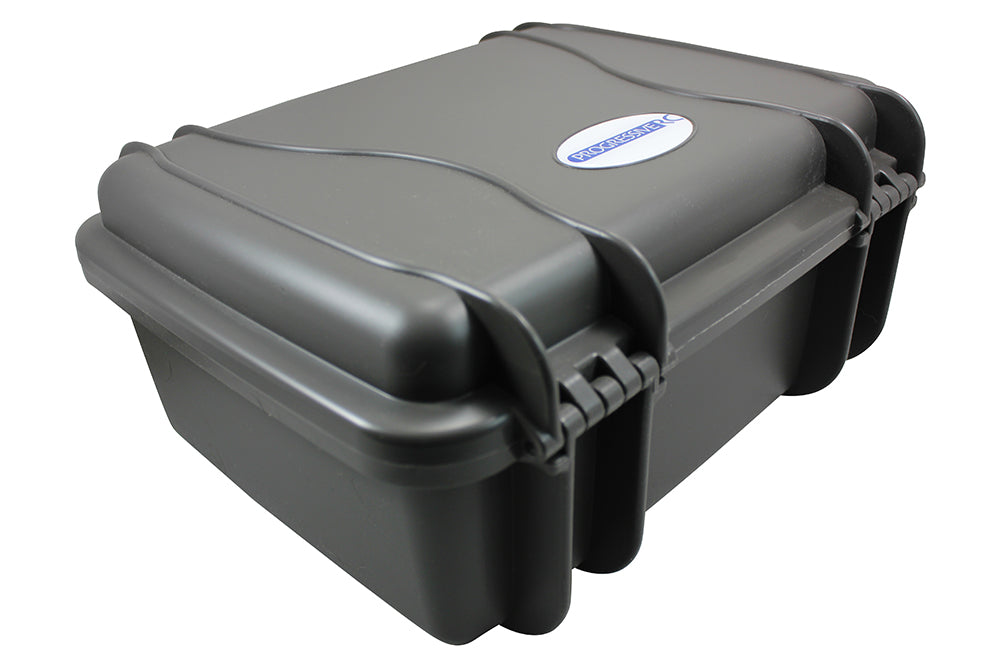

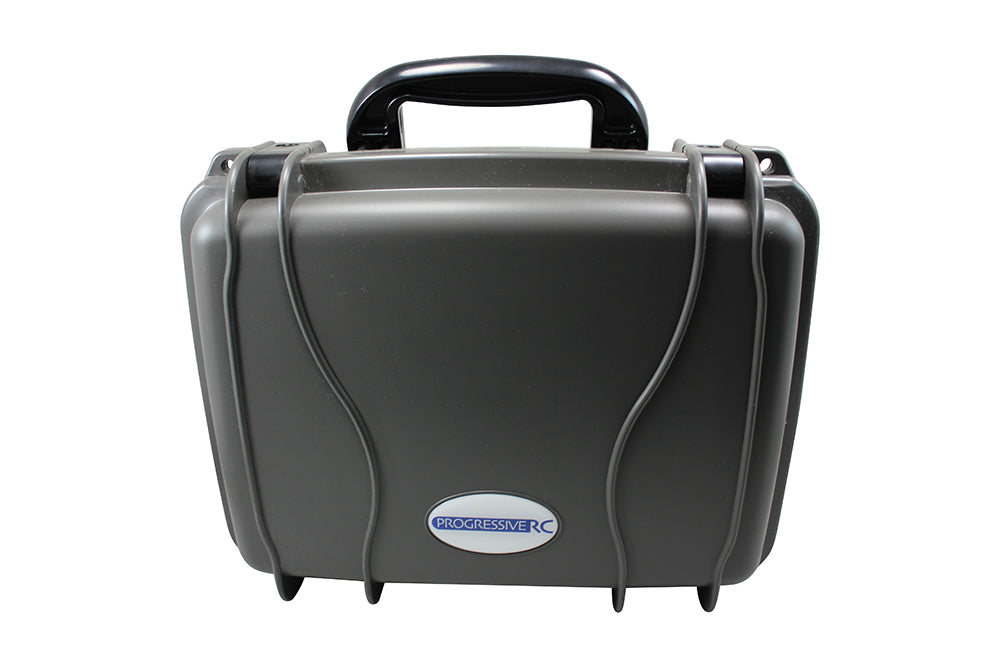

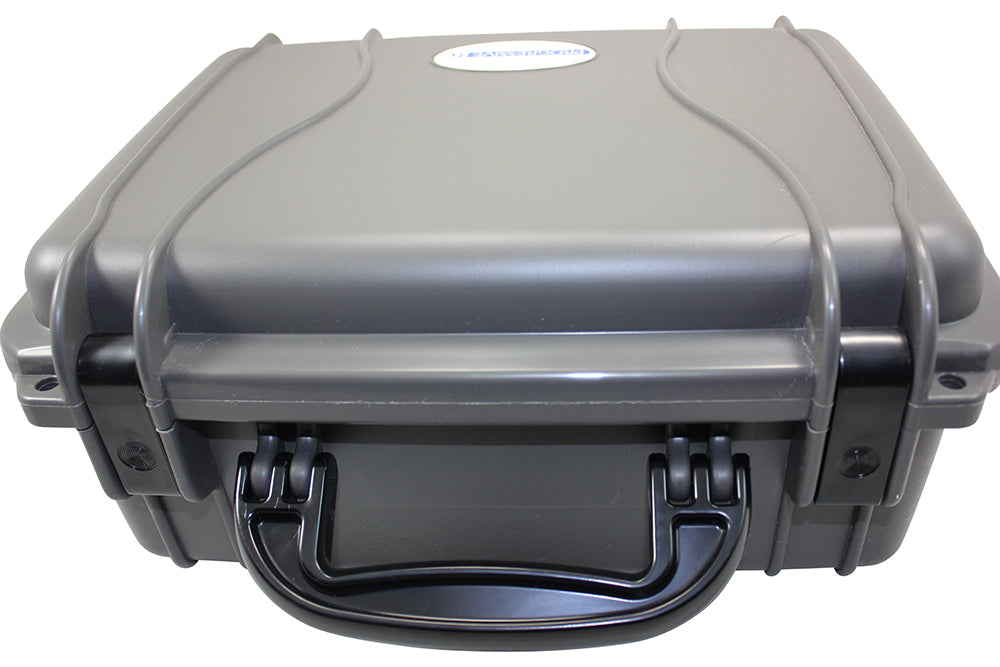

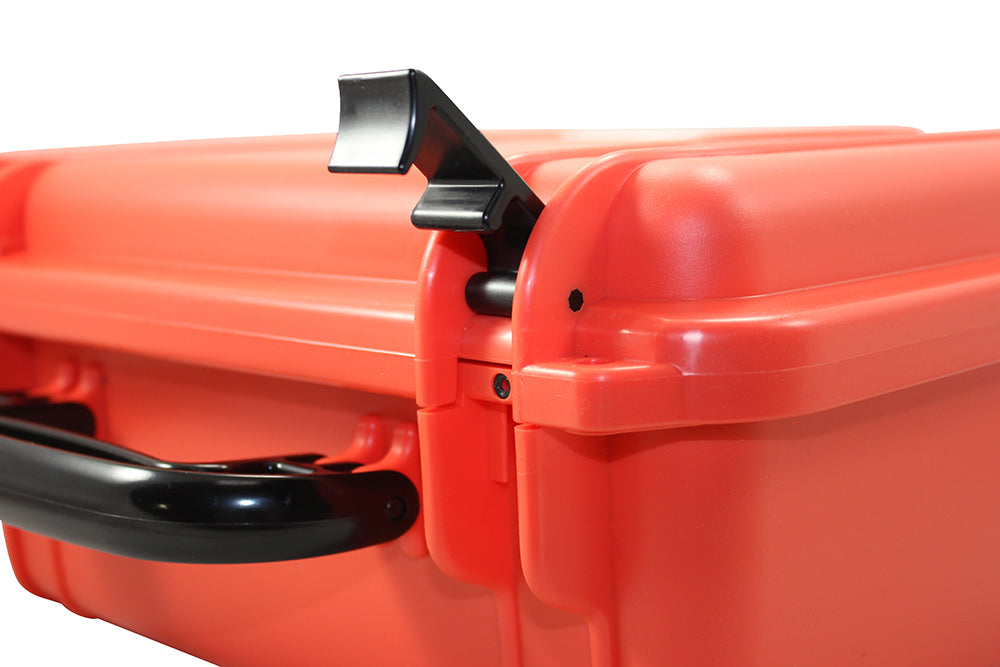

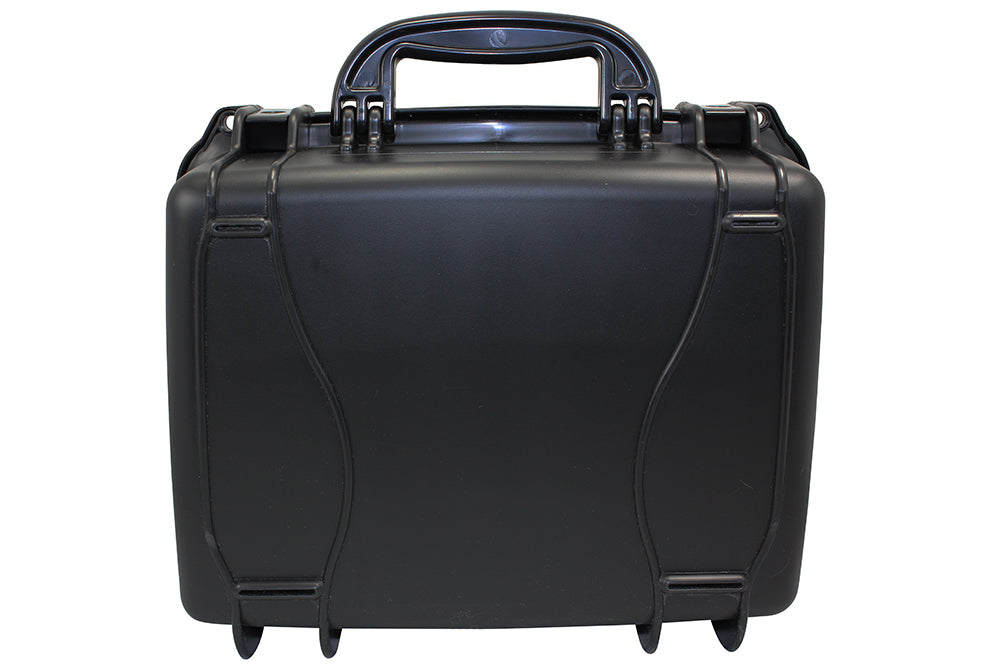

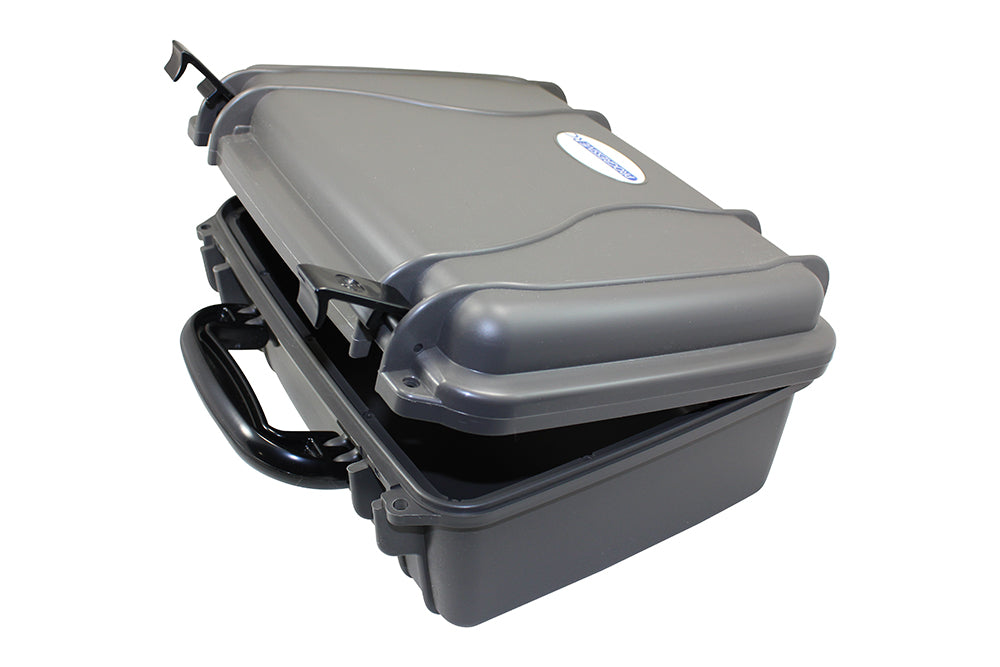

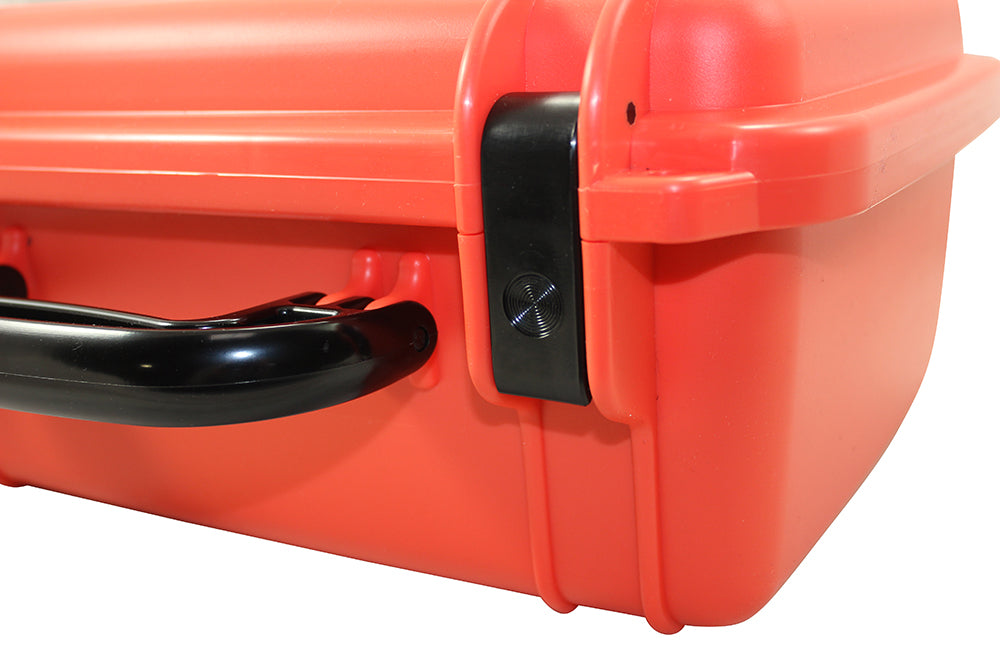

- PRC Hardline Case (lifetime warranty)
- ISDT P30 Dual-Channel Charger (1-year warranty)
- Mean Well RSP-2000-24 Power Supply (5-year warranty)
- (2) 2S-8S EC5 Charger Interface Panels
- USB 3.0 Quick-Charger with Voltmeter
- Heavy Duty AC Cord (cord length may vary due to current global supply chain issues)
- DC Input/Output Port
- (2) 12V 60mm Fans
- Pololu 12V 4.1A Voltage Regulator
- Internal Wiring
- Full Assembly, Installation & Testing
Note: We keep a limited inventory of pre-built cases available for immediate shipment. If your preferred color shows 'Built to Order,' please allow a few days for production.
Input Voltage | 90-264V AC |
Charge Power (Max) | 1300W @ 120V AC, 1500W @240V AC (with additional 500W available from DC output port) |
Charge Current Range | 0.1-30A per channel |
Balance Accuracy | 10mV |
Balance Current | 1.5A per channel |
Discharge Power (Max) | 30W per channel |
Discharge Current Range | 0.2-3A per channel |
LiPo/LiIo/LiFe Cell Count | 1-8S |
NiCd/NiMH Cell Count | 1-16S |
Pb Cell Count | 1-12S |
Dimensions | 15x12x7 inches |
Weight (assembled) | approx. 14 pounds |
